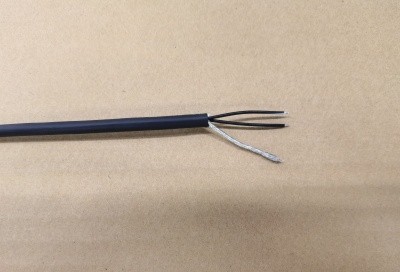

PUR Braid Shielded Multiconductor Cable

Product Item : W04
Category： Custom Wire and Cable
INQUIRY EMAIL

Description

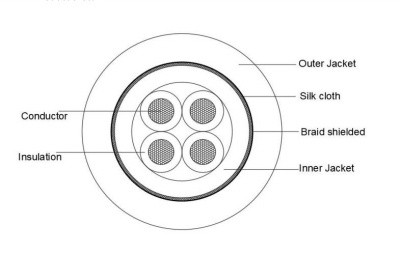

The shield layer on a cable is a conductive sheath of foil or braided wire around the outside of a jacketed wire. Shielding helps protect the internal electrical signal from outside interference and keeps all electronic emissions inside the cable. It's critical to understand the industry and application since this will drive certification requirements and the type EMI/EMC shielding necessary.

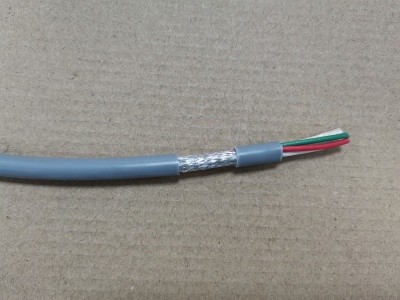

Braided shield layer
Tinned copper
Wire mesh and overbraid

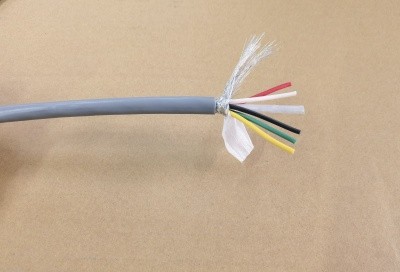

Foil shield layer
Polyester foil shield
Metallized tapes
Connector shielding
Conductive housings
Foil layers within overmold

Features
*Braid Shielded Cat5e bulk cable to minimize EMI/RFI interference
*Min Bend: Continuous Flex = 15x Cable OD; Stationary: 8x Cable OD
*Zero Halogen, Oil Resistant, Industrial PUR Jacket
*EIA/TIA 568, TSB-36, ISO/IEC 11801
*Nominal cable diameter of 0.248" (6.3mm); Nominal conductor insulation OD of 0.039" (0.99mm)

Application
*Industrial Ethernet
*Factory automation
*Manufacturing
*Harsh environment networking
